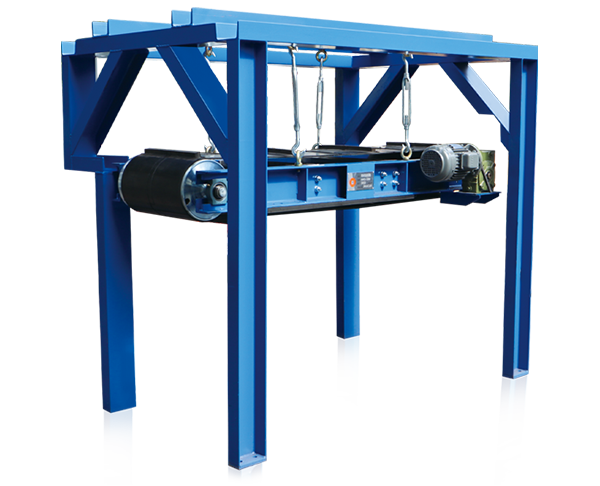

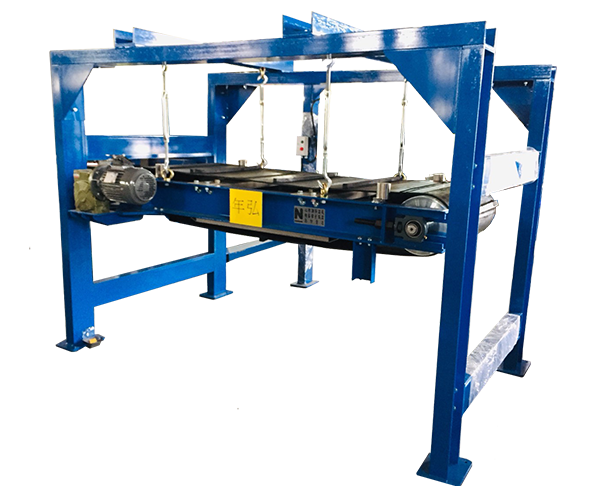

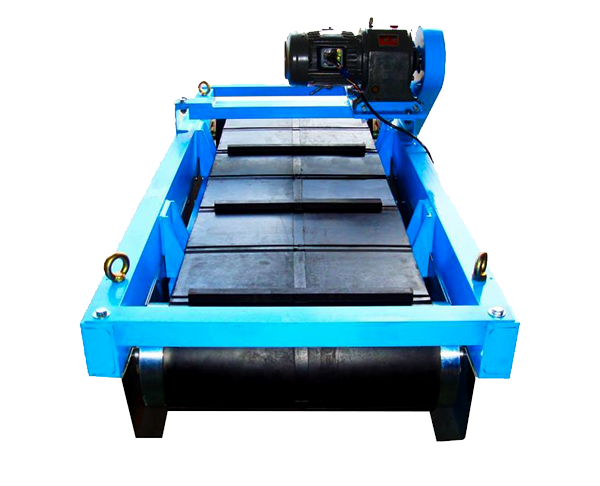

Overbelt Magnetic Separator

Overbelt Magnetic Separator 's Features

  1. Only motor power is required.
  2. Tough durable design is suitable for outdoor use.
  3. Compact size with reliable performance.

Specification

  1. Standard model equipped with wear protection wiper.
  2. Comes with hook for hanging installation.
  3. Highest magnetic force can reach 5000 Gauss.
  4. Customization of machine to meet the needs of customer

Swipe your finger

SPSG Series
Model Magnetic
Force
(GAUSS) 		Attraction
Distance
(mm) 		Belt
Width
(mm) 		Body Dimensions (mm) Belt
Speed
(m/min) 		Power
Output
(kW) 		Hanging
Way
L W1 W2 H
SPSG-800 3000 300 800 2100
(Variable) 		970 1230 400
(Variable) 		1.2 (in line)
1.5


2.2
(cross) 		一字


十字
SPSG-1000 1000
SPSG-1200 4000 400 1200
SPSG-1500 1500
SPSG-1700 1700
SPSG-2000 5000 500 2000

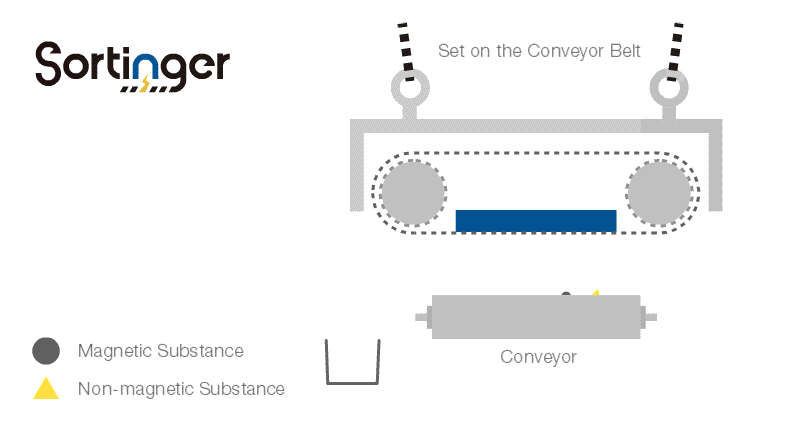

Machine operation

Overbelt Magnetic Separator

Video

suspended permanent magnetic separator for ferrous materials from incineration slag

Suspended Permanent Magnetic Separator | Ferrous materials from Incineration Slag | Sortinger

suspended permanent magnetic separator for iron sand & sand

Suspended Permanent Magnetic Separator | Iron Sand & Sand | Sortinger

suspended permanent magnetic separator for attract No.19 wrench form conveyor

Suspended Permanent Magnetic Separator | Attract No.19 Wrench form conveyor | Sortinger
